A Pulley Kit for a compressor is a mechanical drive assembly designed to transmit rotational power from a motor, engine, or other prime mover to the compressor shaft. The pulley system plays an important role in controlling compressor speed, maintaining efficient power transmission, and ensuring smooth and reliable operation. It is commonly used in belt-driven reciprocating, rotary, and other types of industrial compressors.

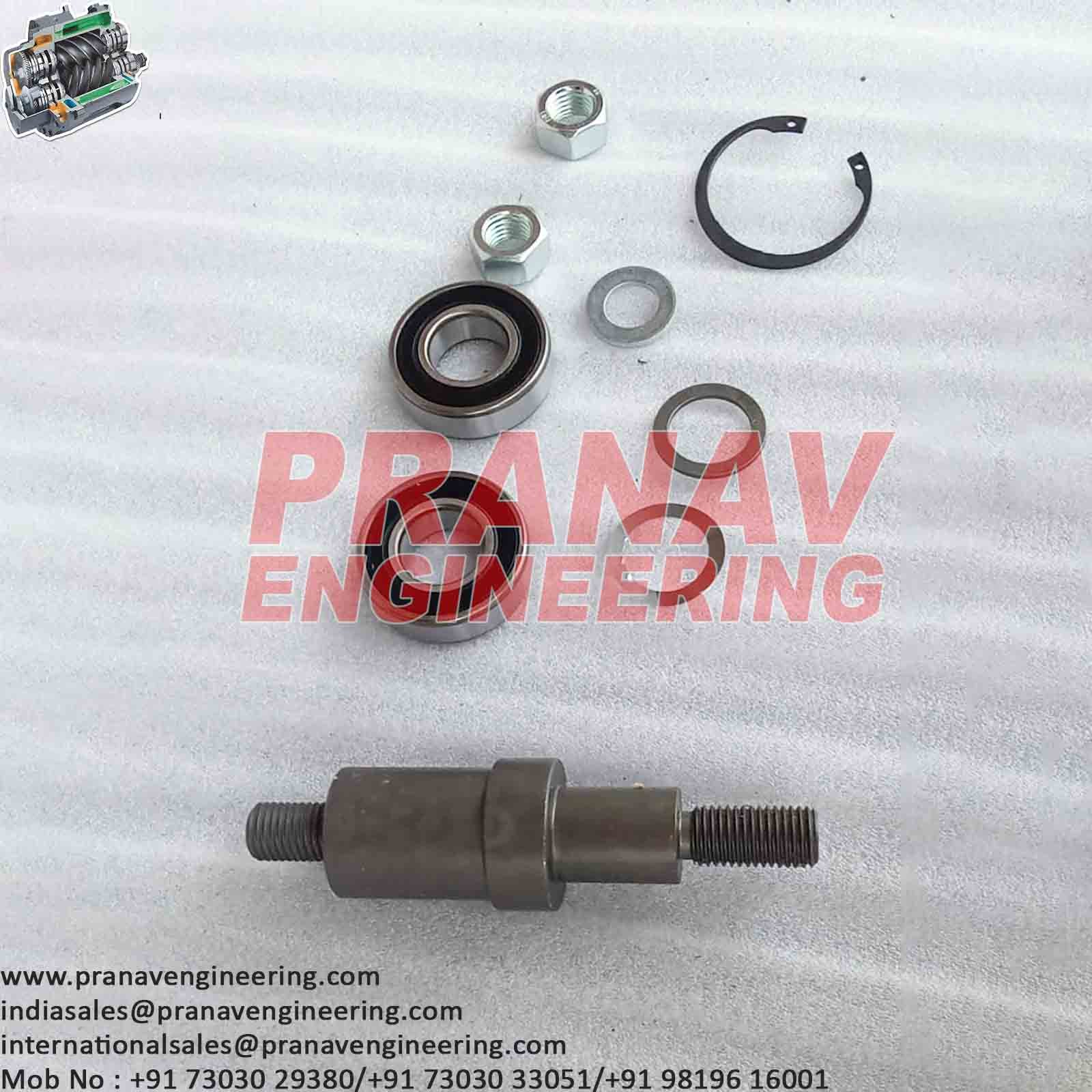

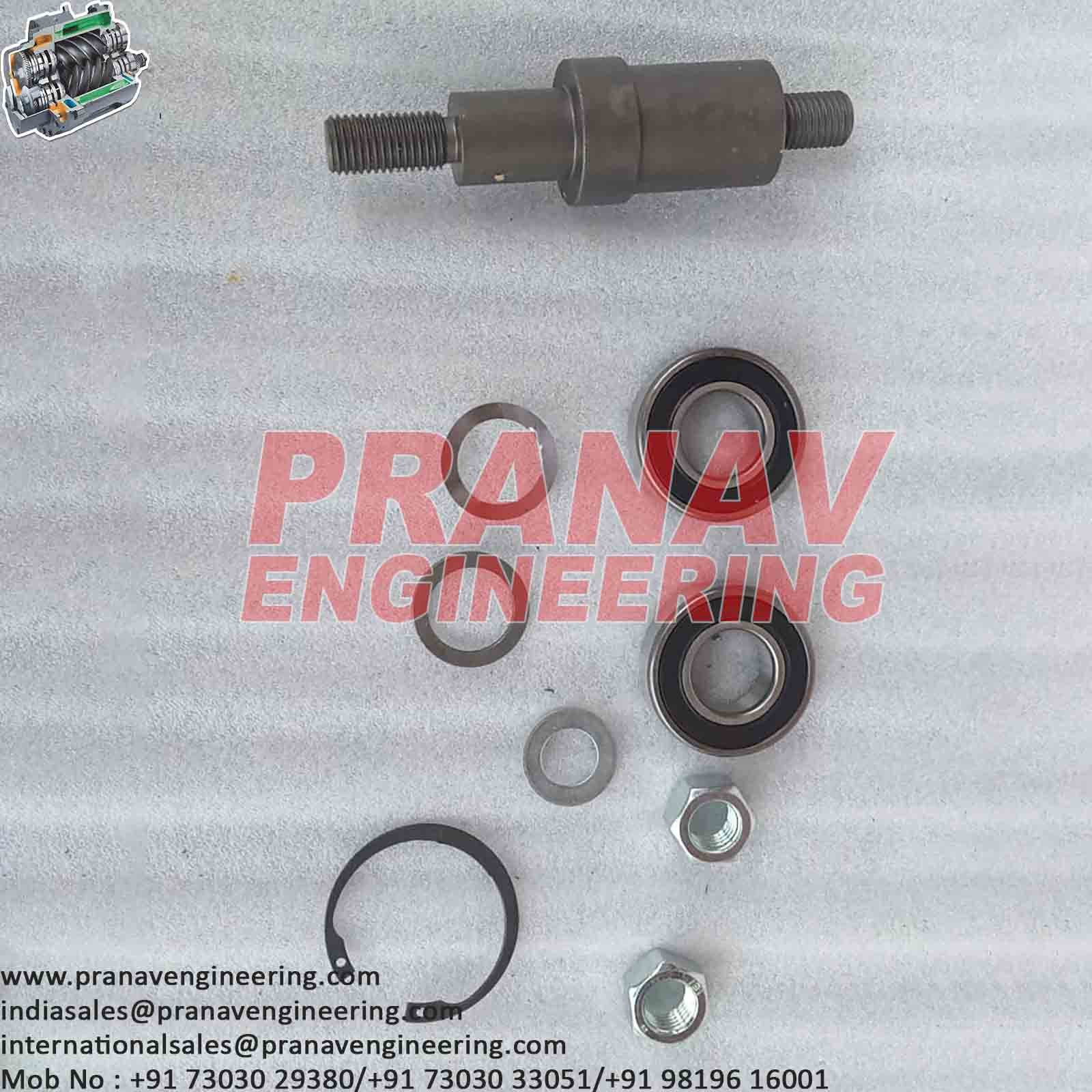

The Pulley Kit generally consists of a drive pulley, driven pulley, mounting components, key, bush, spacers, retaining hardware, and compatible drive belts, depending on the compressor design. The pulleys are manufactured with accurately machined grooves to accommodate the specified belt profile. The pulley dimensions, groove configuration, material, and number of grooves are selected according to the compressor power requirement, operating speed, and belt arrangement.

The primary function of the Pulley Kit is to transfer torque between the driving motor and the compressor. When the motor rotates the drive pulley, the belt transfers this rotational motion to the compressor pulley. The pulley ratio determines the speed at which the compressor shaft rotates. By selecting the correct pulley sizes, the required compressor speed can be achieved while maintaining appropriate motor loading and power transmission efficiency.

During installation, the pulley is mounted securely on the motor or compressor shaft using the appropriate key, bush, taper-lock arrangement, or fastening system. Correct shaft alignment is essential to prevent excessive belt wear, vibration, noise, and uneven loading. The drive belt is then fitted into the pulley grooves and adjusted to the specified tension. After installation, the pulley and belt assembly should be checked for alignment, free rotation, and proper tension before the compressor is operated.

A properly designed Pulley Kit helps provide smooth power transmission, controlled compressor speed, reduced vibration, and reliable mechanical operation. The pulley and belt arrangement also provides a practical means of changing compressor speed when required by selecting an appropriate pulley ratio. In addition, belt-driven systems can absorb minor shock loads and provide some isolation between the motor and compressor.

For reliable operation, regular inspection and maintenance are required. The pulley grooves should be checked for wear, cracks, corrosion, or damage. Belt tension and condition should be inspected periodically, and any worn or damaged belt should be replaced. Shaft alignment and mounting fasteners should also be checked to prevent loosening during operation. Excessive belt tension should be avoided because it can increase bearing loads and reduce component life.

The major advantages of a Compressor Pulley Kit include efficient power transmission, simple construction, easy maintenance, speed control capability, dependable operation, and cost-effective drive arrangement.

Overall, the Pulley Kit is an important part of a belt-driven compressor system. Its correct selection, installation, alignment, and maintenance are essential for achieving efficient power transmission, stable compressor performance, reduced downtime, and extended service life of the drive components.
