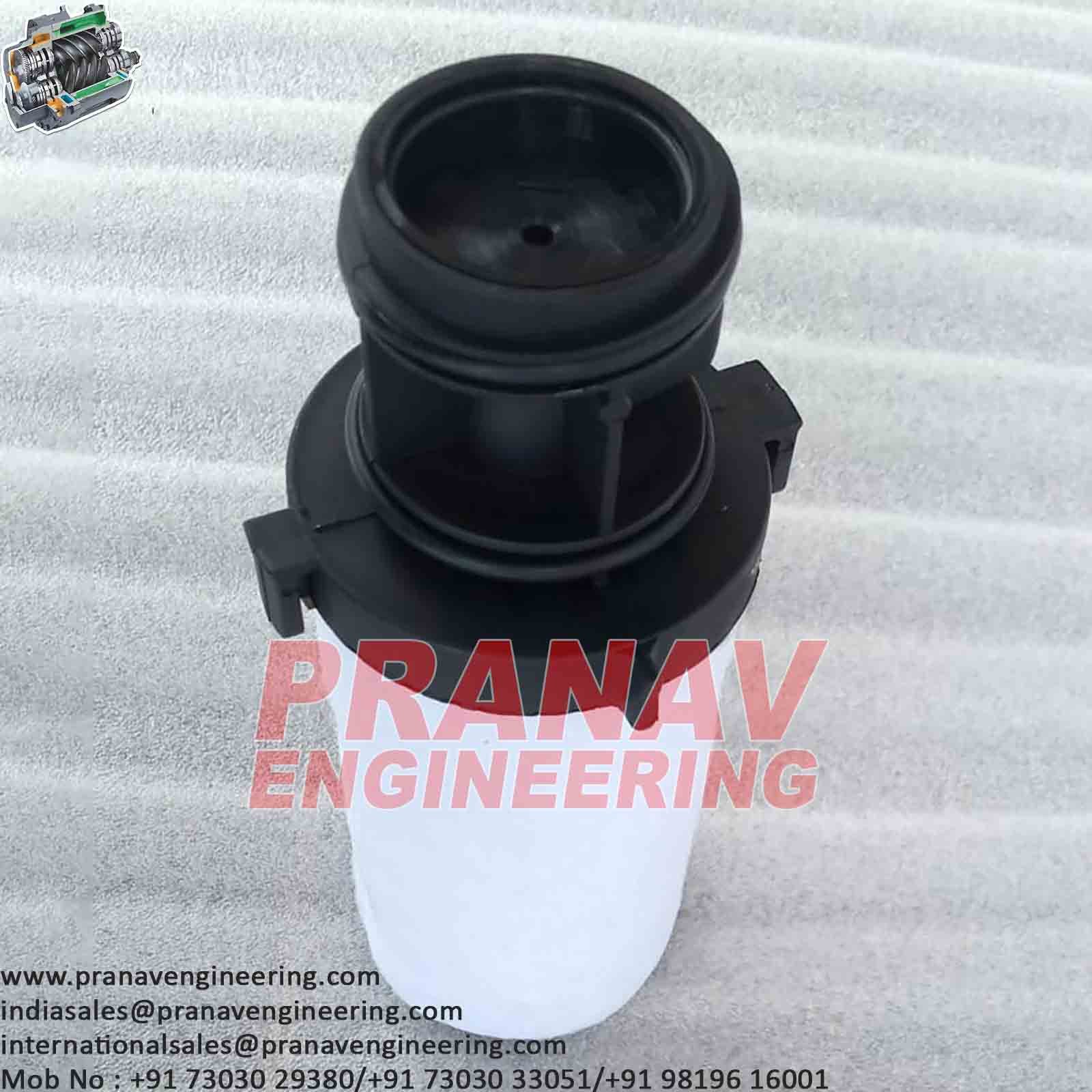

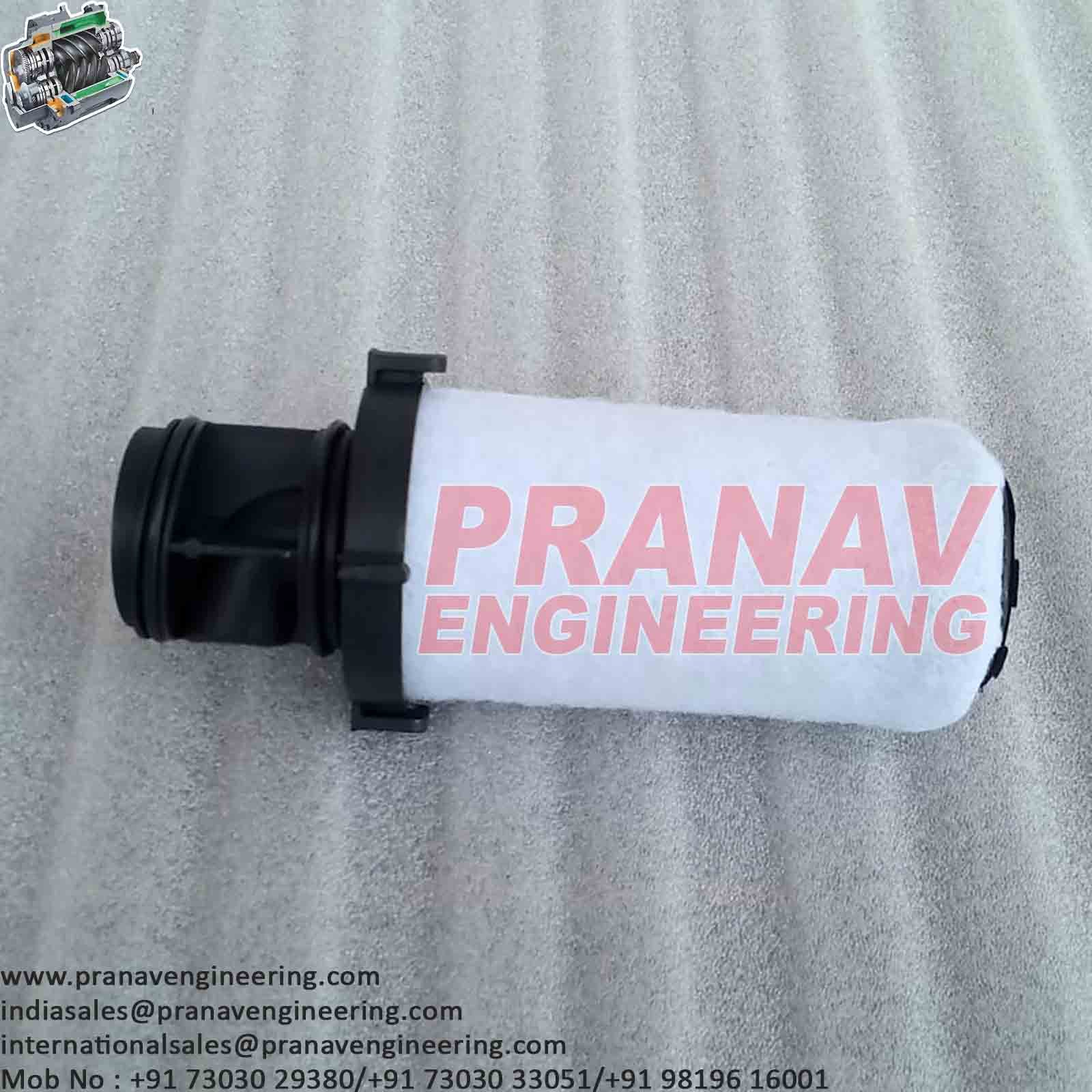

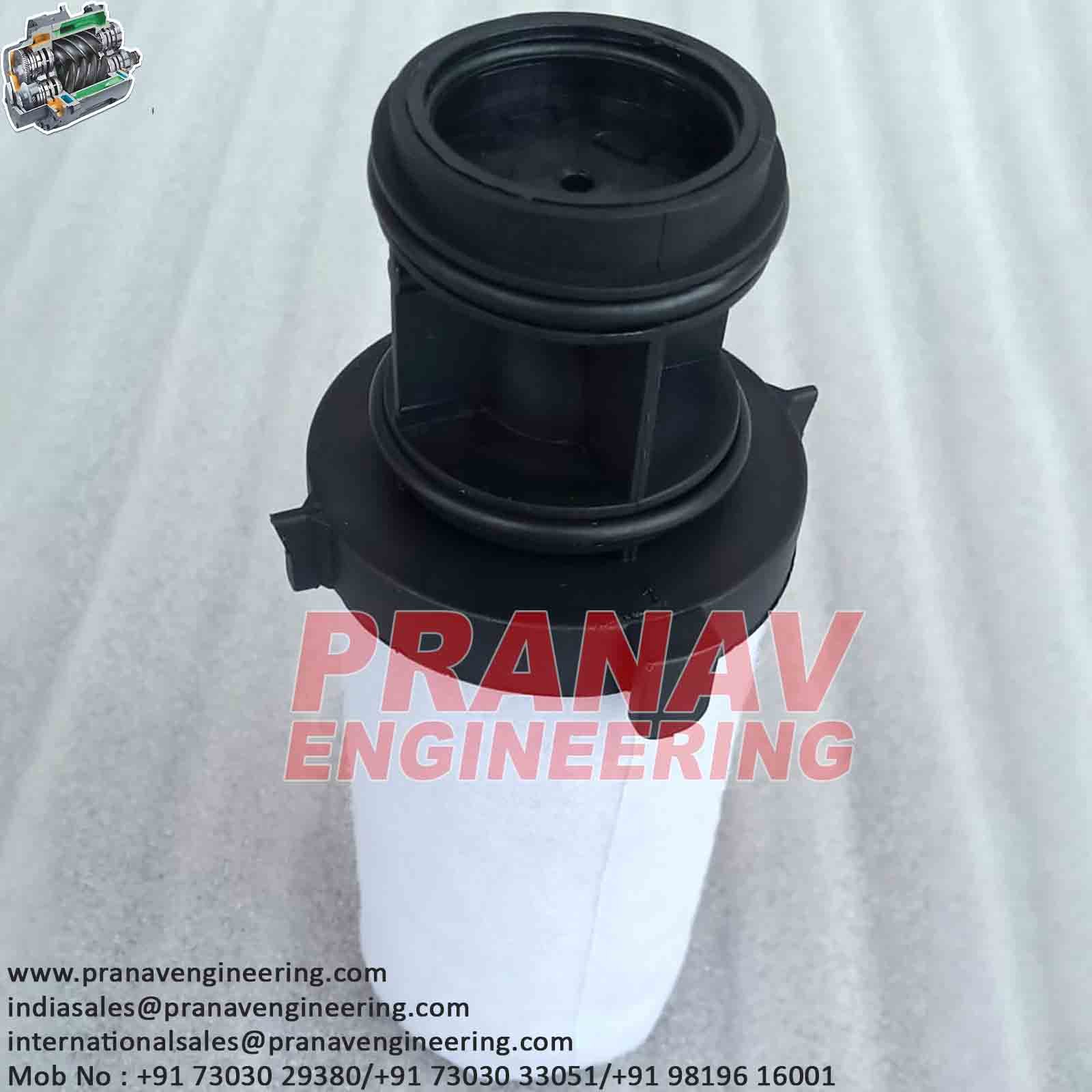

A line filter element is an important component of a compressed-air compressor system used to remove contaminants from compressed air or gas before it reaches downstream equipment. The filter element is normally installed inside a line filter or filter housing and is designed to separate solid particles, dust, rust, oil aerosols, moisture, and other contaminants from the compressed-air stream. Proper filtration helps protect pneumatic equipment, control valves, instruments, pipelines, and other components from contamination and premature wear.

The filter element is manufactured from specially designed porous filter media, which may consist of microfibers, synthetic materials, cellulose, activated carbon, or other materials depending on the filtration requirement. The element is supported by an internal structure that allows compressed air to pass through the filter media while retaining contaminants. Different filter grades are available for different applications, such as general-purpose particulate filtration, coalescing filtration, fine filtration, and oil-vapour removal.

During compressor operation, contaminated compressed air enters the filter housing and flows through the filter element. As the air passes through the filter media, solid particles and liquid contaminants are captured. In a coalescing filter, small oil and water aerosols combine into larger droplets, which can then be collected and drained from the filter housing. The filtered air exits the housing and continues to the downstream air system.

One of the main advantages of a line filter element is that it protects downstream equipment. Contaminants in compressed air can damage pneumatic cylinders, control valves, regulators, measuring instruments, air tools, and other sensitive components. Clean compressed air also helps reduce maintenance requirements and improves the reliability and service life of connected equipment.

The filter element gradually becomes loaded with contaminants during operation. As contamination increases, the resistance to airflow increases and the pressure drop across the filter rises. A high pressure drop can reduce system efficiency and increase energy consumption. Therefore, the filter condition should be monitored regularly using a differential-pressure indicator or gauge where provided.

Routine maintenance is essential for reliable operation. The filter element should be inspected and replaced according to the manufacturer’s recommended service interval or when the differential pressure reaches the specified limit. Before replacing the element, the filter housing should be isolated and fully depressurized. The housing, seals, drain system, and connections should also be inspected for damage or leakage.

The correct filter element must be selected according to airflow capacity, operating pressure, temperature, filtration grade, contaminant type, and compressor application. Using an incorrect or low-quality element may result in poor filtration, excessive pressure loss, or premature failure.

Overall, the line filter element is a vital part of a compressor compressed-air treatment system. Proper selection, monitoring, and timely replacement provide clean compressed air, protect downstream equipment, maintain system efficiency, reduce contamination-related failures, and support reliable long-term compressor operation.
